Description
Features
1.The machine is equipped with the brand power, brand-name quality assurance, superior performance, easy to start.
2.The working radius is small, can walking in a narrow area.
3.Lengthen handrail, easy to turn, save time and effort.
4. It uses the Japanese-made FYH(seiko)bearings, to ensure the machine’s performance.
Product Paramenters
|
Model
|
BM50
|
BM60
|
|||
|
WEIGHT
|
|||||
|
Operating Weight
|
540kg
|
600kg
|
|||
|
Static Linear Load
|
45n/cm
|
58/63n/cm/56/64n/cm
|
|||
|
DIMENSION
|
|||||
|
Working Width
|
780mm
|
692mm
|
|||
|
Overall Length
|
2480mm
|
2620mm
|
|||
|
Overall Height
|
1820mm
|
1140mm
|
|||
|
Steel Wheel Width
|
600mm
|
650mm
|
|||
|
Steel Wheel Diameter
|
426mm
|
380mm
|
|||
|
DRIVE
|
|||||
|

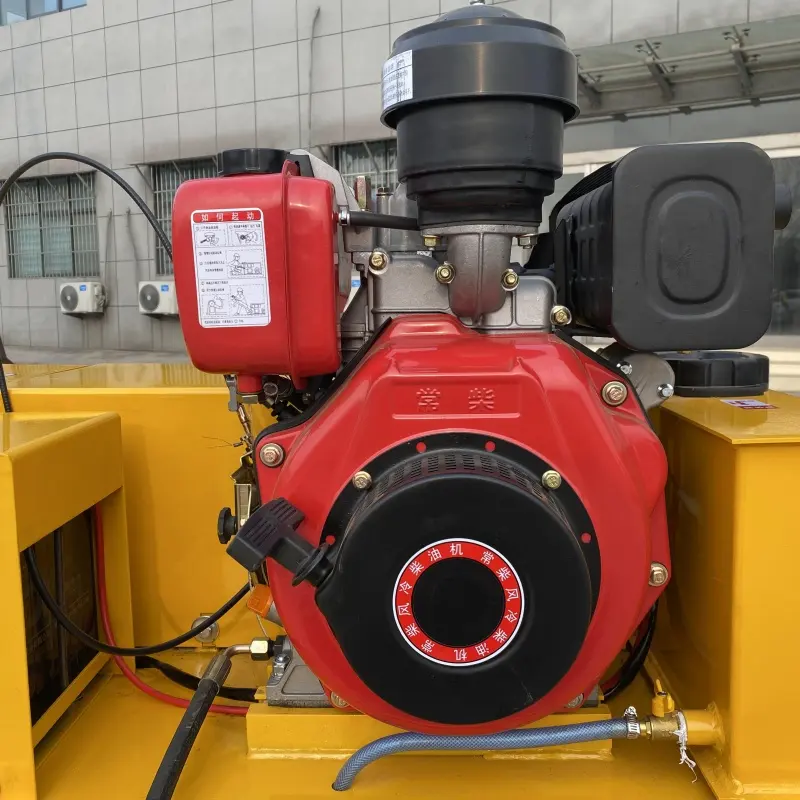

Engine Brand
|
HONDA/Changchai
|
HONDA/Changchai
|
|||
|
Engine Model
|
GX270/178F
|
GX390/186F
|
|||
|
Engine Type
|
Gasoline/Diesel four stroke
|
Gasoline/Diesel four stroke, air cooling
|
|||
|
Number Of Cylinder
|
1
|
1
|
|||
|
Output Power
|
6.7kw/4.4kw
|
9.7kw/4.8kw
|
|||
|
Rotating Speed
|
3600rpm
|
3600rpm
|
|||
|
WALKING CHARACTERISTICS
|
|||||
|
Speed
|
0-3.8km/h
|
0-4km/h
|
|||
|
Grade Ability
|
30%
|
30%
|
|||
|
BRAKES
|
|||||
|
Walking Way
|
Two-way hydraulic, chain transmission
|
Mechanical transmission electromagnetic clutch
|
|||
|
EXCITING SYSTEM
|
|||||
|
Vibrating Frequency
|
70hz
|
65hz
|
|||
|
Vibrating Amplitude
|
0.5mm
|
0.5mm
|
|||
|
Exciting Force
|
20kn
|
22kn
|
|||
|
SPRINKLER SYSTEM
|
|||||
|
Water Spray Form
|
Gravity-Type Water
|
||||
|
CAPACITY
|
|||||
|
Fuel Capacity
|
5.9L/2.7L
|
6.5L/3.5L
|
|||
|
Hydraulic Tank Capacity
|
18L
|
25L
|
|||
|
Water Tank Capacity
|
20L
|
40L
|
|||
