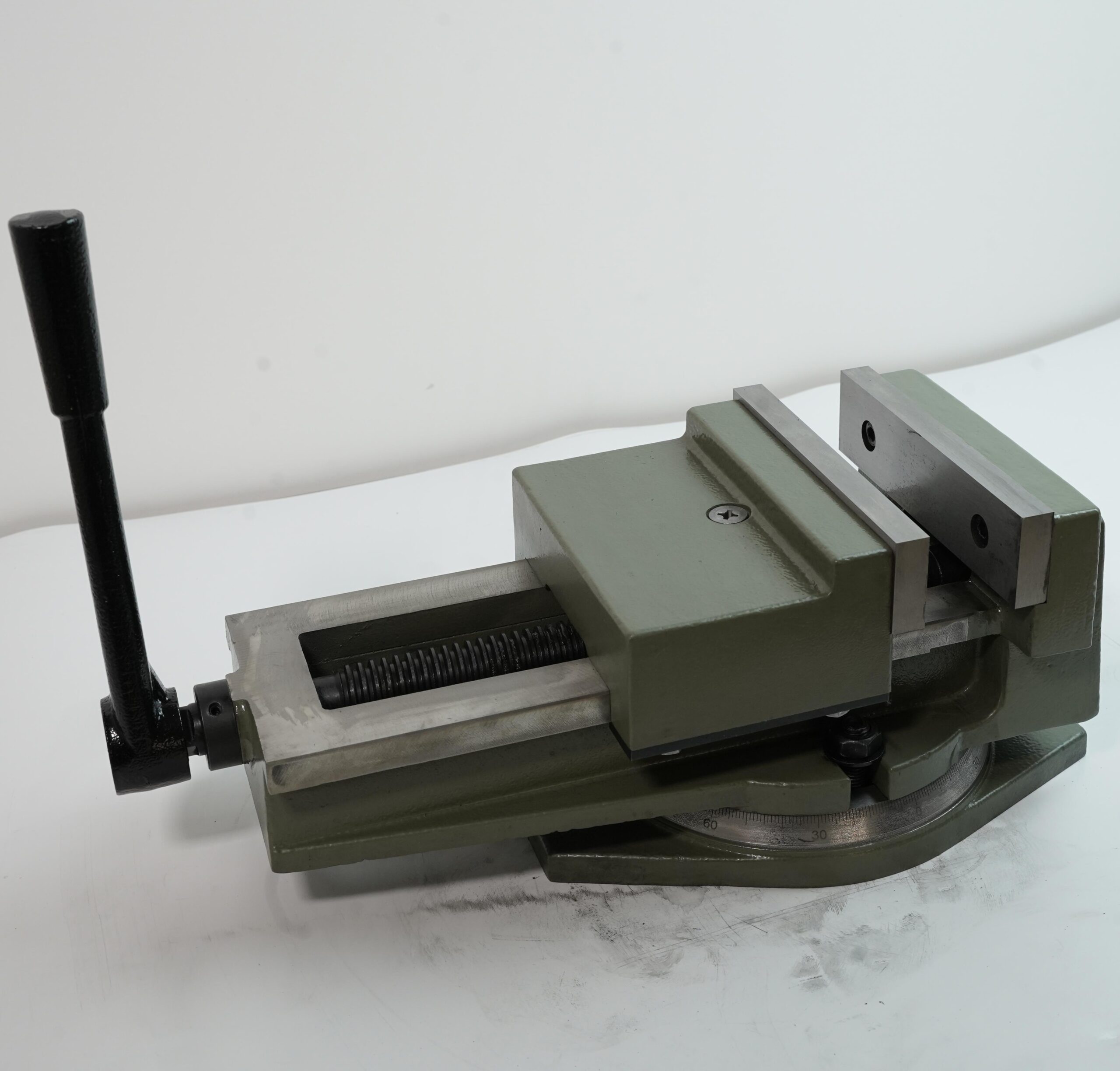

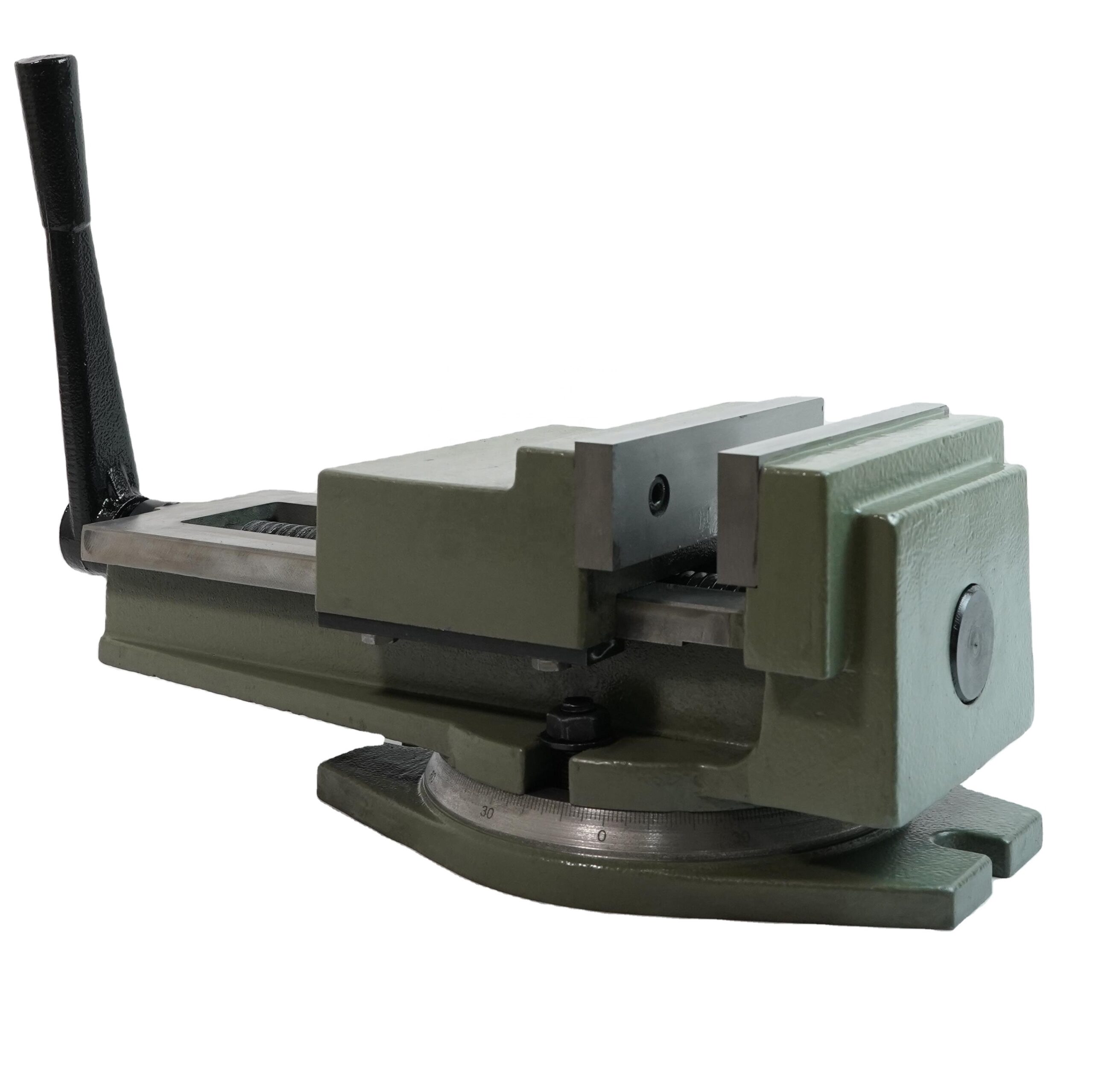

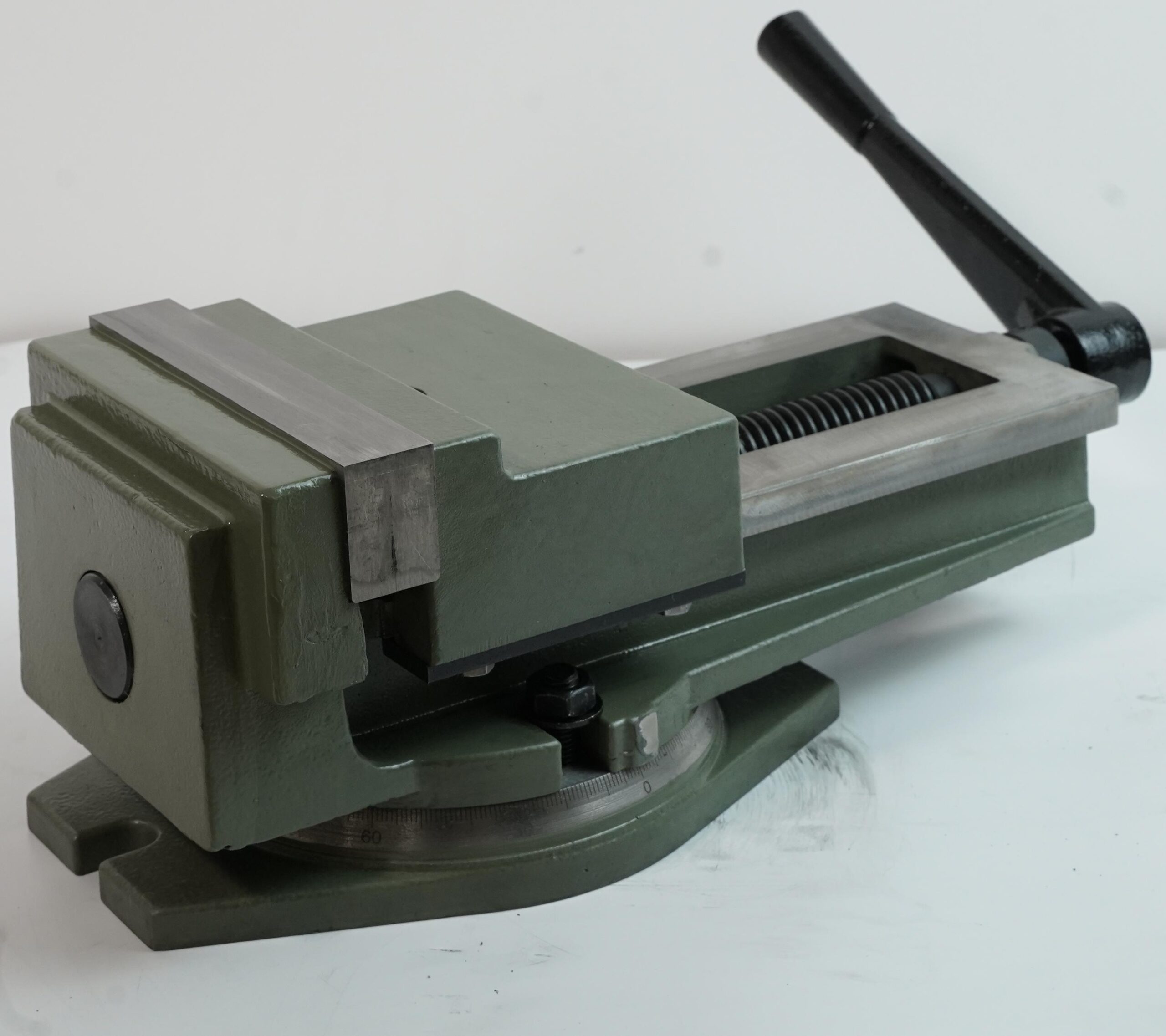

Description
ine vice
1)The vise body are made from high quality cast irons
2)The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
3)It is often used on milling machine and drilling machine to process surface,slot,holes,etc.
| model no. | A | B | C | L | W | H | G.W/N.W | PACKING SIZE(mm) |
| QB136 | 135 | 170 | 36 | 370 | 166 | 118 | 17/16 | 420X200X150 |
| QB160 | 160 | 180 | 51 | 402 | 182 | 142 | 26/25 | 420X210X170 |
| QB200 | 200 | 220 | 64 | 475 | 223 | 172 | 38/37 | 500X240X180 |
| QB250 | 250 | 280 | 64 | 612 | 290 | 186 | 57/55 | 610X300X200 |
| QB320 | 320 | 360 | 81 | 685 | 360 | 205 | 81/79 | 720X390X220 |
