Description

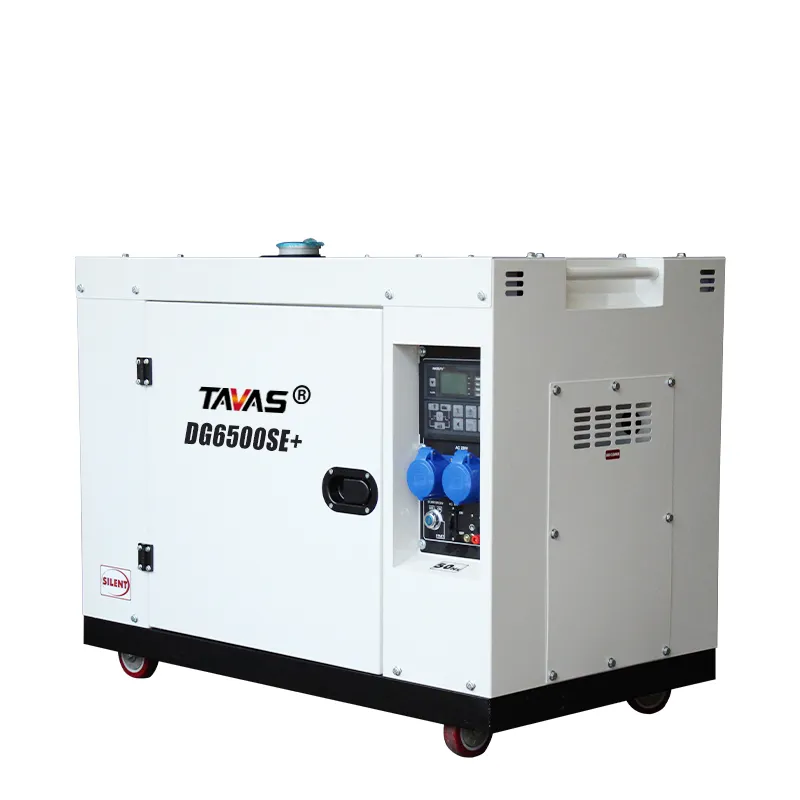

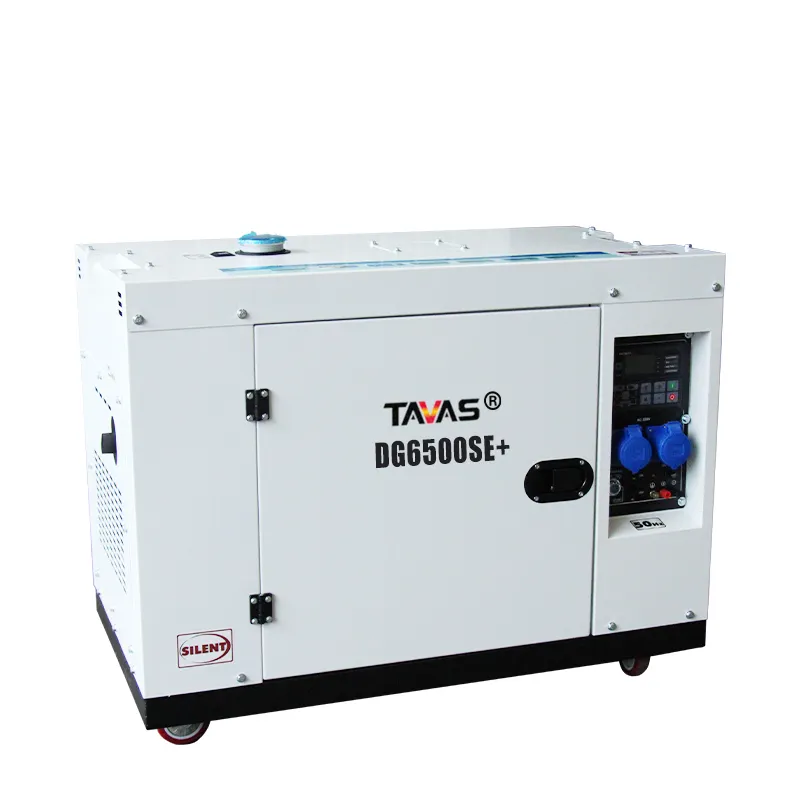

Silent Diesel Generator
The most common power silent generator in 1 phase with square and compact appearance design with good structural strength .

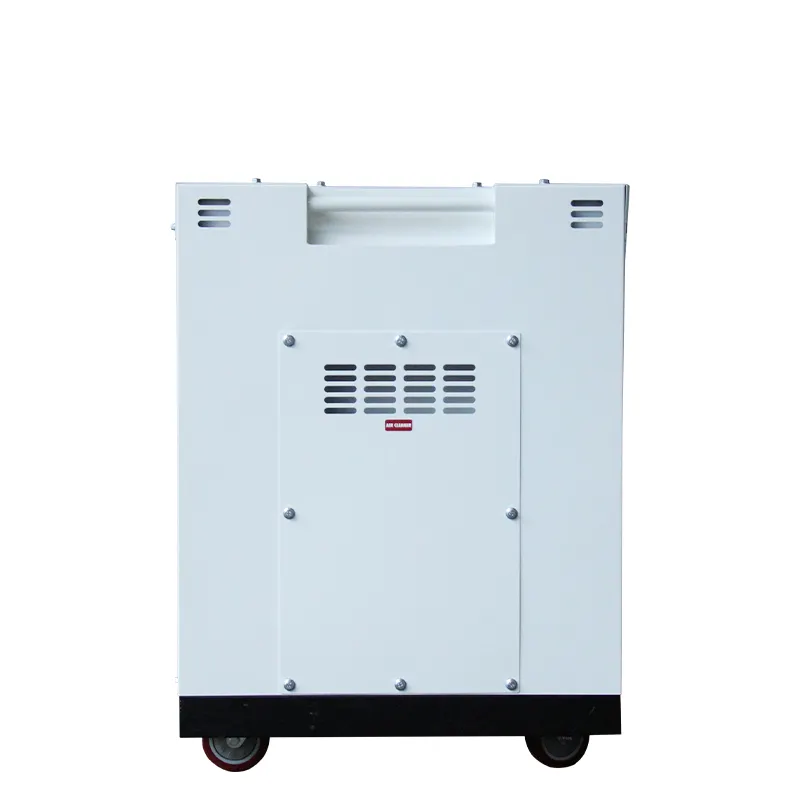

Customisable in the range of 5 kW to 7 kW.There are two maintenance doors at the front and rear.Four wheels make more easier to handle and move.
LCD display meter shows voltage , frequency,single&total running time.
|
Technical data
|
|||||
|
Generator data
|
|
DG6500SE
|
DG7500SE
|
DG8500SE
|
DG9500SE
|
|
Peak Power
|
kW
|
5.0
|
6.5
|
6.5
|
7.5
|
|
Nominal Power
|
kW
|
4.6
|
5.5
|
6.0
|
7.0
|
|
Peak Power
|
kVA
|
6.3
|
8.1
|
8.1
|
9.4
|
|
Nominal Power
|
kVA
|
5.8
|
6.9
|
7.5
|
8.8
|
|
Rated voltage
|
V
|
110/120,220,230,240,120/240,220/380,230/400,240/415
|
|||
|
Rated frequency
|
Hz
|
50 | 60
|
50 | 60
|
50 | 60
|
50 | 60
|
|
Fuel tank capacity
|
L
|
16
|
16
|
16
|
16
|
|
Fuel consumption at 50% load
|
g/kW.h
|
≤280
|
≤280
|
≤280
|
≤280
|
|
Engine data
|
|||||
|
Model
|
|
186FA
|
188F
|
192FC
|
195F
|
|
No. of Cylinder
|
|
Single-Cylinder
|
|||
|
Bore x Stroke
|
mm
|
86×72
|
88×75
|
92×75
|
95×75
|
|
displacement
|
cc
|
418
|
456
|
498
|
531
|
|
Nominal speed
|
rpm
|
3000 | 3600
|
3000 | 3600
|
3000 | 3600
|
3000 | 3600
|
|
starting system
|
|
Electric
|
Electric
|
Electric
|
Electric
|
|
lubrication system
|
|
Forced lubrication at multiple points
|
|||
|
lubrication volume
|
L
|
1.65
|
1.65
|
1.65
|
1.65
|
|
cooling system
|
|
Forced air-cooling by fly wheel fan
|
|||
|
Alternator
|
|||||
|
Type
|
|
Pure copper inductive 2 pole alternator
|
|||
|
AC voltage control
|
|
AVR（automatic voltage regulator）
|
|||
|
Insulation class
|
|
F
|
F
|
F
|
F
|
|
Protection level
|
|
IP23
|
IP23
|
IP23
|
IP23
|
|
Efficiency
|
|
0.83
|
0.82
|
0.83
|
0.84
|
|
Voltage accuracy
|
|
±2.5%
|
|||
|
Noise level
|
|||||
|
Sound pressure level(Lpa) at 7m
|
dB(A)
|
69
|
69
|
71
|
73
|
|
Sound power level(Lwa)
|
dB(A)
|
94
|
94
|
95
|
96
|
